End Of Injection analysis directly from calibration data
The ECU-Jobs EOI Tool is a professional workflow aid for diesel calibrators, ECU tuners, WinOLS users and file service providers. It makes common manual calculations around start of injection, rail pressure, injection duration and End Of Injection faster and easier to review.
The workflow follows real calibration work: SOI maps, rail pressure maps, duration maps and axis data can be transferred from existing calibration environments. From there, operating points can be evaluated, values interpolated and EOI results calculated.
ECU Jobs is not a calibration provider and does not sell its own tuning files. This tool page complements the platform with a technical resource for professional users working with diesel ECU software and Common Rail systems.
Tool interface
EOI Calculator with a WinOLS-style copy/paste workflow

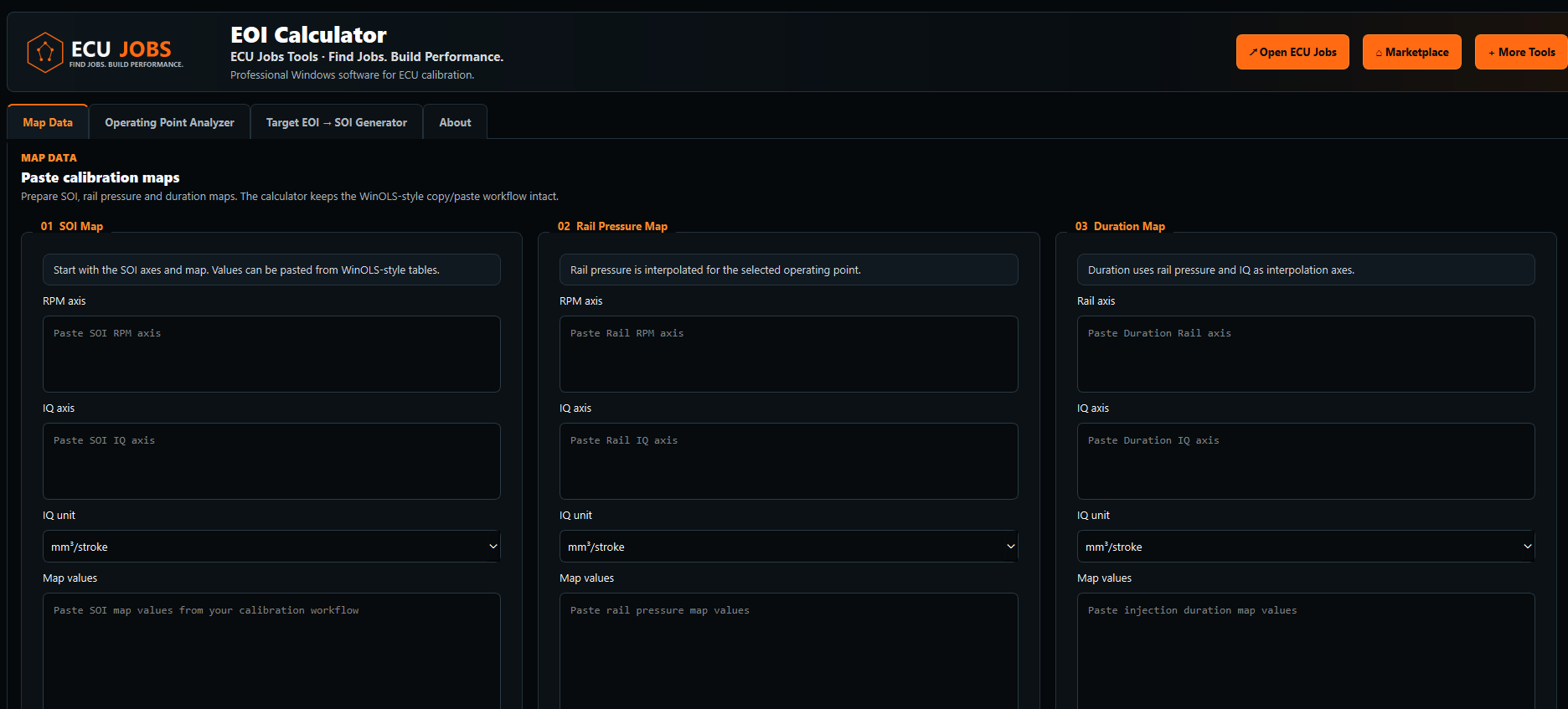

The screenshot shows the real ECU-Jobs EOI Calculator interface: paste map data, analyze operating points and prepare target EOI to SOI maps.
Professional Calibration Utility
Free Professional End Of Injection Calculator for Diesel ECU Calibration
The ECU-Jobs EOI Common Rail Tool was developed for diesel ECU tuners, calibration engineers and automotive software developers working with Bosch EDC17, EDC16 and many other Common Rail diesel engine management systems. It is not a generic calculator, but a practical calibration utility for daily professional workflows.
The tool simplifies injection timing analysis, calculates End Of Injection values and supports the development of optimized Start Of Injection maps directly from existing calibration data. This helps users evaluate injection events faster and reduce repetitive manual spreadsheet work.
Its workflow is built around real WinOLS usage. Map data can be copied from existing projects and pasted into the tool. It works with SOI maps, rail pressure maps, duration maps and axis data without necessarily requiring DAMOS, A2L files or manufacturer documentation.
Operating Point Analysis
Analyze operating points and understand injection events faster
Enter RPM and injection quantity
Calibrators define a concrete operating point using engine speed and injection quantity. The quantity can be used in mg/stroke or mm3/stroke depending on the calibration format.
Automatic interpolation
The tool interpolates Start Of Injection, rail pressure and injection duration from the pasted maps, then calculates the resulting End Of Injection value.
Evaluate timing relative to TDC
The results help users understand where combustion is occurring relative to top dead center and whether the operating point looks technically plausible.
Automatic EOI Calculation
EOI calculation for Stage 1, Stage 2 and custom diesel calibrations
SOI, rail pressure and duration as input
The integrated calculator determines End Of Injection from interpolated SOI, rail pressure and injection duration, giving a direct technical view of the injection window.
Identify optimization opportunities
EOI values support the review of Stage 1 and Stage 2 calibrations, hybrid turbo setups, large injector conversions, smoke reduction strategies and exhaust gas temperature management.
Check limits and consistency
The tool helps identify injection timing limitations, validate SOI adjustments faster and develop more consistent calibrations across the operating range.
Target EOI to SOI Generator
Generate SOI maps from a desired target EOI
One of the key features is the ability to generate complete SOI maps from a desired target EOI. Instead of calculating each area manually in spreadsheets, users can paste existing calibration data, define a target value and generate a recalculated SOI map.
The workflow is designed for professional users: paste existing SOI, rail pressure and duration data, define the target EOI and generate a complete working basis for further calibration. This accelerates development and reduces mistakes in repetitive spreadsheet work.
The generated values do not replace professional review, measurement or the calibrator's responsibility. They provide a structured basis to analyze injection timing faster and continue SOI strategy development in a more focused way.
Features
What the ECU-Jobs EOI Tool does
This page describes the professional feature scope. The ECU-Jobs EOI Tool is available as a free ZIP download and supports technical diesel calibration workflows.
Operating point analysis
Enter engine speed and injection quantity to analyze SOI, rail pressure, injection duration and EOI at specific operating points.
End Of Injection calculation
Calculate EOI from interpolated SOI, rail pressure and duration data for clearer combustion timing review.
SOI map generator
Generate complete SOI maps from a desired target EOI and reduce repetitive spreadsheet work.
Use WinOLS data
Copy and paste map data directly from WinOLS without requiring DAMOS, A2L or OEM documentation.
mg/stroke and mm3/stroke
Work with both common diesel calibration quantity formats and classify fuel quantity axes correctly.
Common Rail focus
Designed as an analysis aid for Bosch EDC16, EDC17 and many other Common Rail diesel platforms.
Workflow
From WinOLS data to EOI review
Paste map data
Transfer SOI, rail pressure, duration and axis data from the calibration environment.
Select operating point
Enter RPM and injection quantity, using either mg/stroke or mm3/stroke.
Interpolate values
The tool determines matching SOI, rail pressure and duration values for the operating point.
Calculate EOI
End Of Injection is calculated as a calibration indicator and made easier to evaluate.
Generate SOI map
A new SOI map can be generated from a target EOI as a working basis.
Use cases
For professional diesel and ECU software workflows
Stage 1 and Stage 2 calibration
EOI review helps evaluate injection timing more consistently during professional diesel calibration.
Hybrid turbo and injector setups
Changed hardware makes injection duration, rail pressure and combustion position especially relevant.
Smoke and EGT strategies
EOI analysis can help assess limits, temperature behavior and smoke tendency in a more technical way.
Compatibility
Typical platforms and users
Bosch EDC16
Bosch EDC17
Common Rail Diesel
VAG Diesel
BMW Diesel
Mercedes-Benz Diesel
Ford Diesel
Opel Diesel
PSA Diesel
WinOLS users
File services
Calibration engineers
The tool is intended as a technical workflow aid. Calibration, legal assessment, dyno validation, vehicle condition and lawful use remain the responsibility of the professionals carrying out the work.
More topics
Related ECU Jobs topics
The EOI Tool belongs to the technical environment around file service requests, WinOLS workflows and professional ECU calibration.
Legacy Download
Windows version remains available as a download
The ECU-Jobs EOI Tool remains available as a free ZIP download. The Windows version is no longer developed and remains a legacy utility for existing workflows.
Legacy version
No further Windows development
Future features, modernization and website embedding are handled through ECU Jobs Premium: providers activate the browser-based Calibration Tools in the dashboard and generate the embed code there.
FAQ
Frequently asked questions about the ECU-Jobs EOI Tool
What is the ECU-Jobs EOI Tool?
The ECU-Jobs EOI Tool is a free professional Windows utility for diesel calibrators. It helps analyze SOI, rail pressure, injection duration and End Of Injection from Common Rail calibration data.
What does End Of Injection mean?
End Of Injection describes the crankshaft angle where fuel injection ends relative to top dead center. In diesel calibration it can influence combustion behavior, smoke, exhaust gas temperature and response.
Can the tool work with WinOLS data?
The tool is intended for workflows with copied WinOLS map data. SOI, rail pressure, duration and axis data can be pasted and evaluated without separate file conversion.
Is the download available?
Yes. The ECU-Jobs EOI Tool is available as a free ZIP download and can be downloaded directly through the download button on this page.
Does the tool require DAMOS or A2L?
No. The EOI Tool is designed to work with existing map and axis data and does not require DAMOS, A2L or manufacturer documentation for the described workflow.
Which Common Rail systems are relevant?
The tool is intended for professional Common Rail diesel calibration, for example Bosch EDC16, EDC17 and comparable diesel ECUs when the required SOI, rail pressure, duration and axis data is available.
Who is the EOI Tool for?
The tool is intended for professional ECU tuners, diesel calibrators, WinOLS users, Bosch EDC16 and EDC17 calibrators, file service providers and automotive software developers.
Can I use the EOI Online Tool on my own website?
Yes. The browser-based EOI Online Tool is part of ECU Jobs Premium. Premium providers activate EOI, TQ-IQ and the Log Analyzer in the dashboard and generate the embed codes for their own website.
Will the Windows version continue to be developed?
No. The Windows version remains available as a free legacy download. New features and modernization are focused on the ECU Jobs Calibration Tools Online version.
Is ECU Jobs a calibration provider?
No. ECU Jobs is a platform for professional ECU file service requests and provider offers. The EOI Tool is a technical workflow aid for calibration work.
